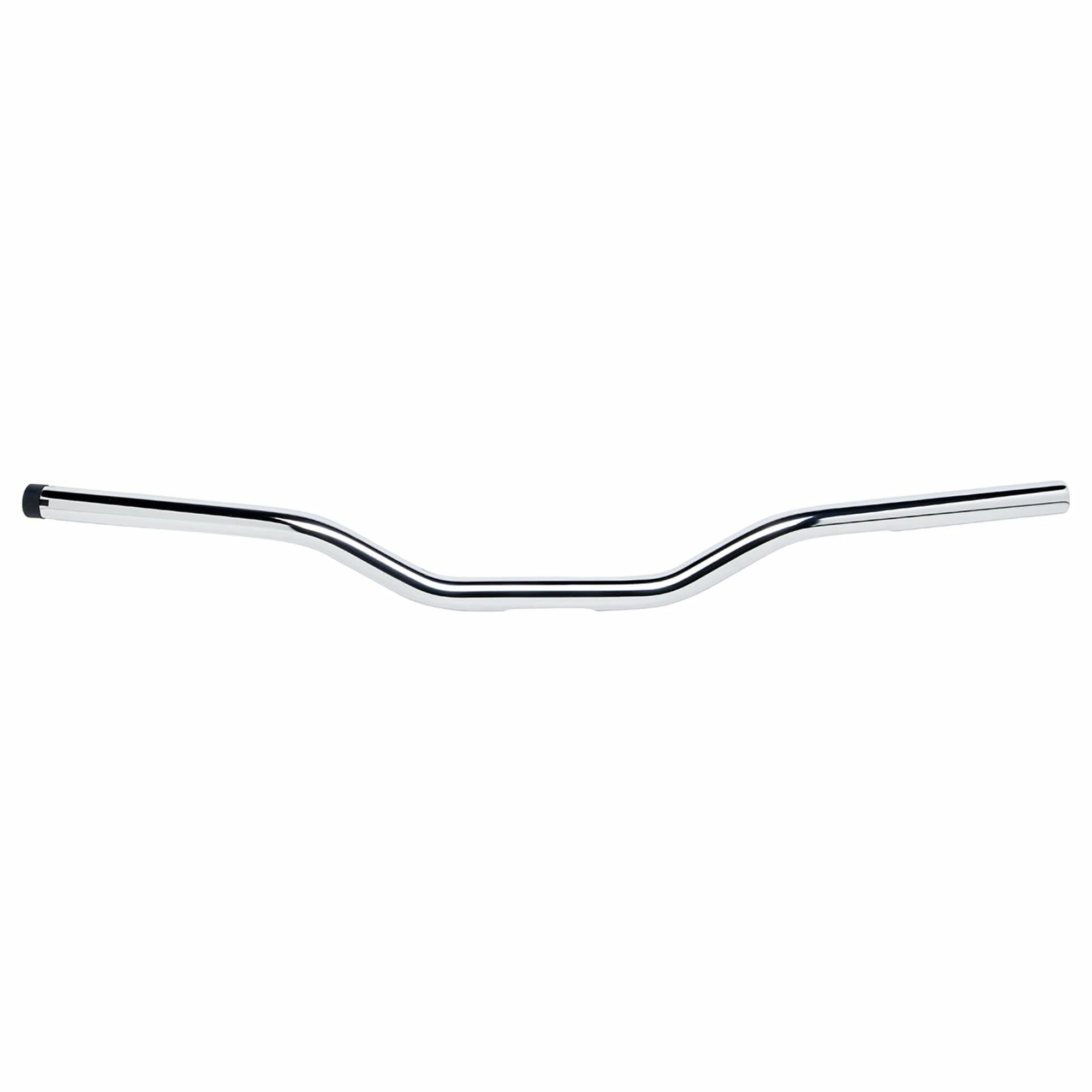

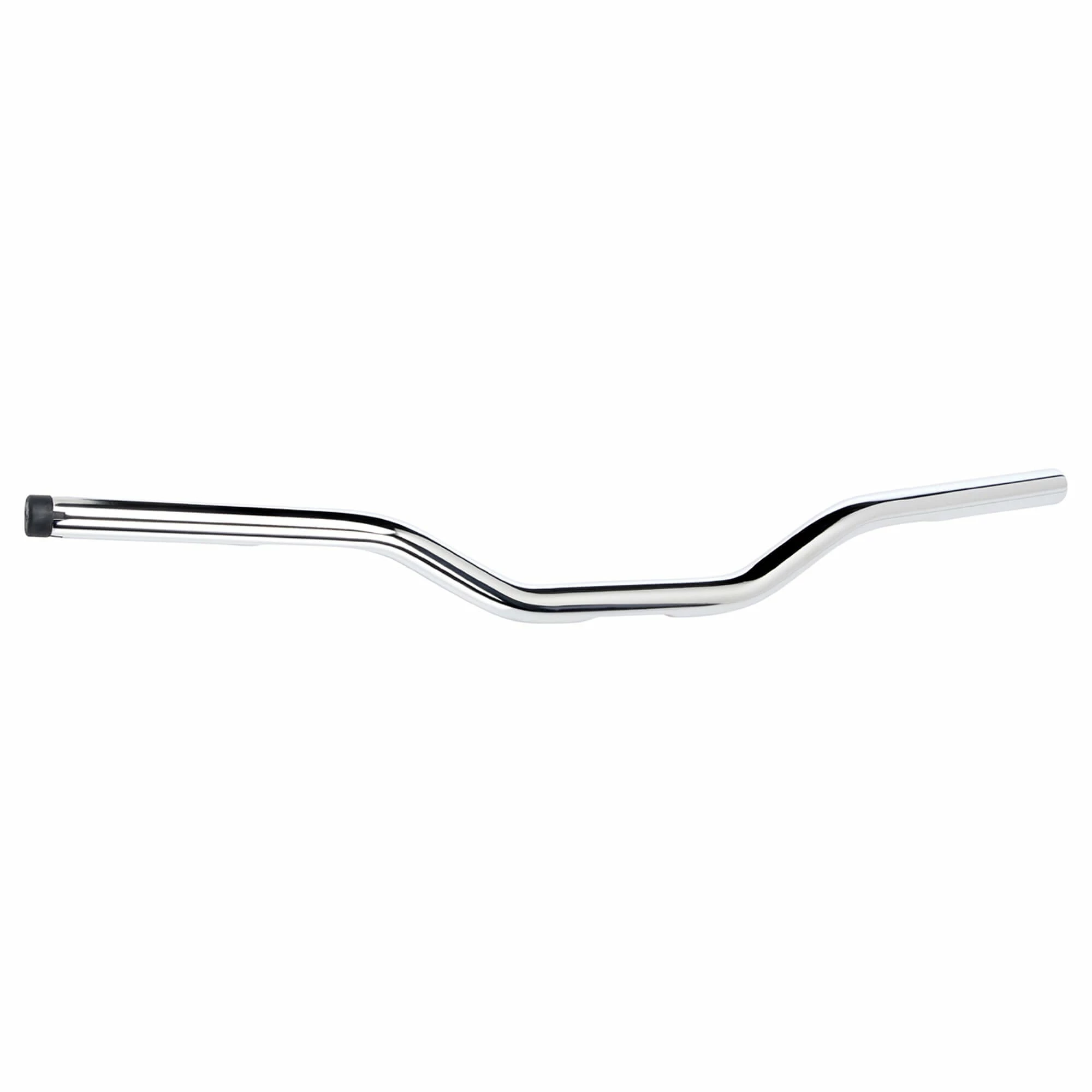

Biltwell Tracker Handlebars – 1 Inch – Chrome

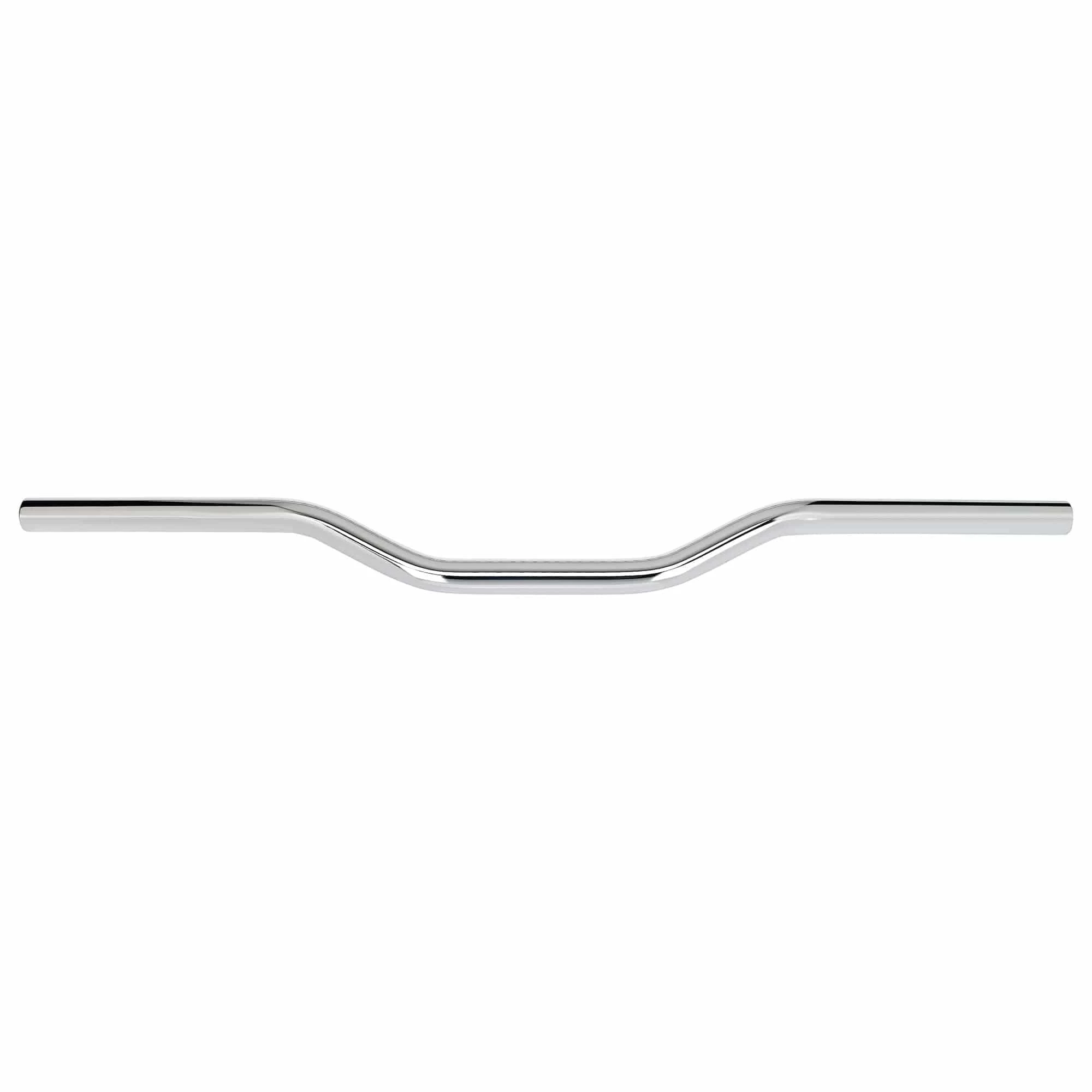

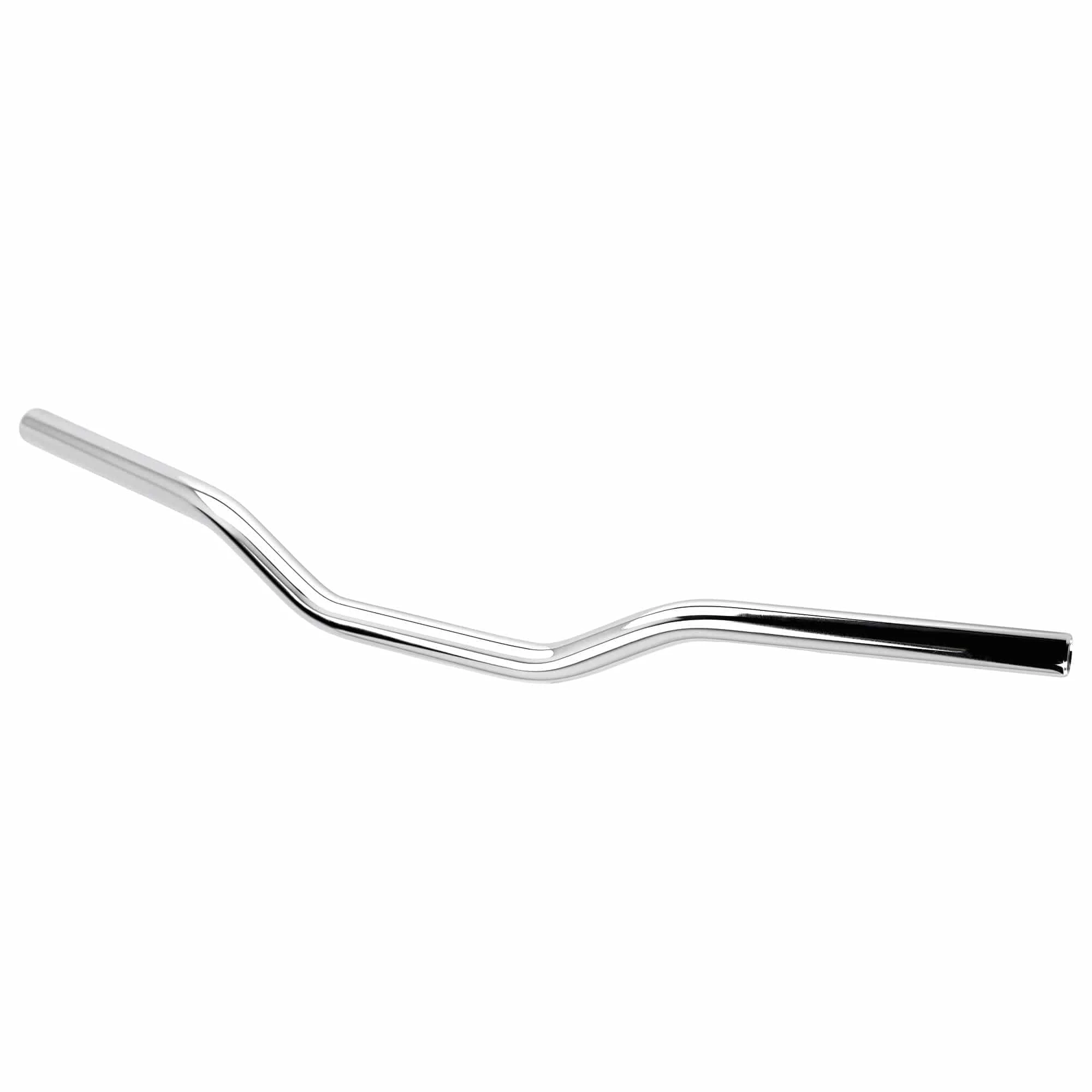

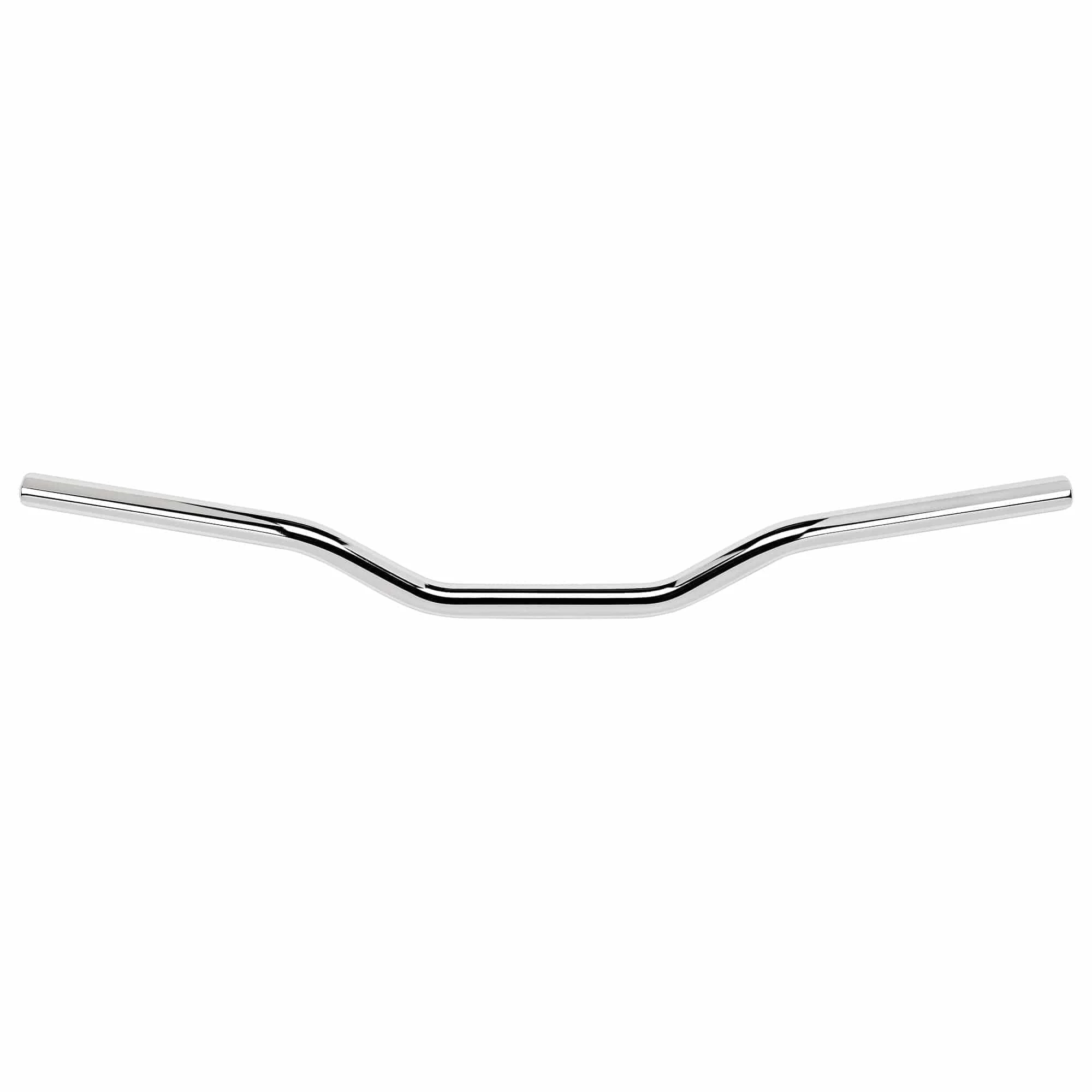

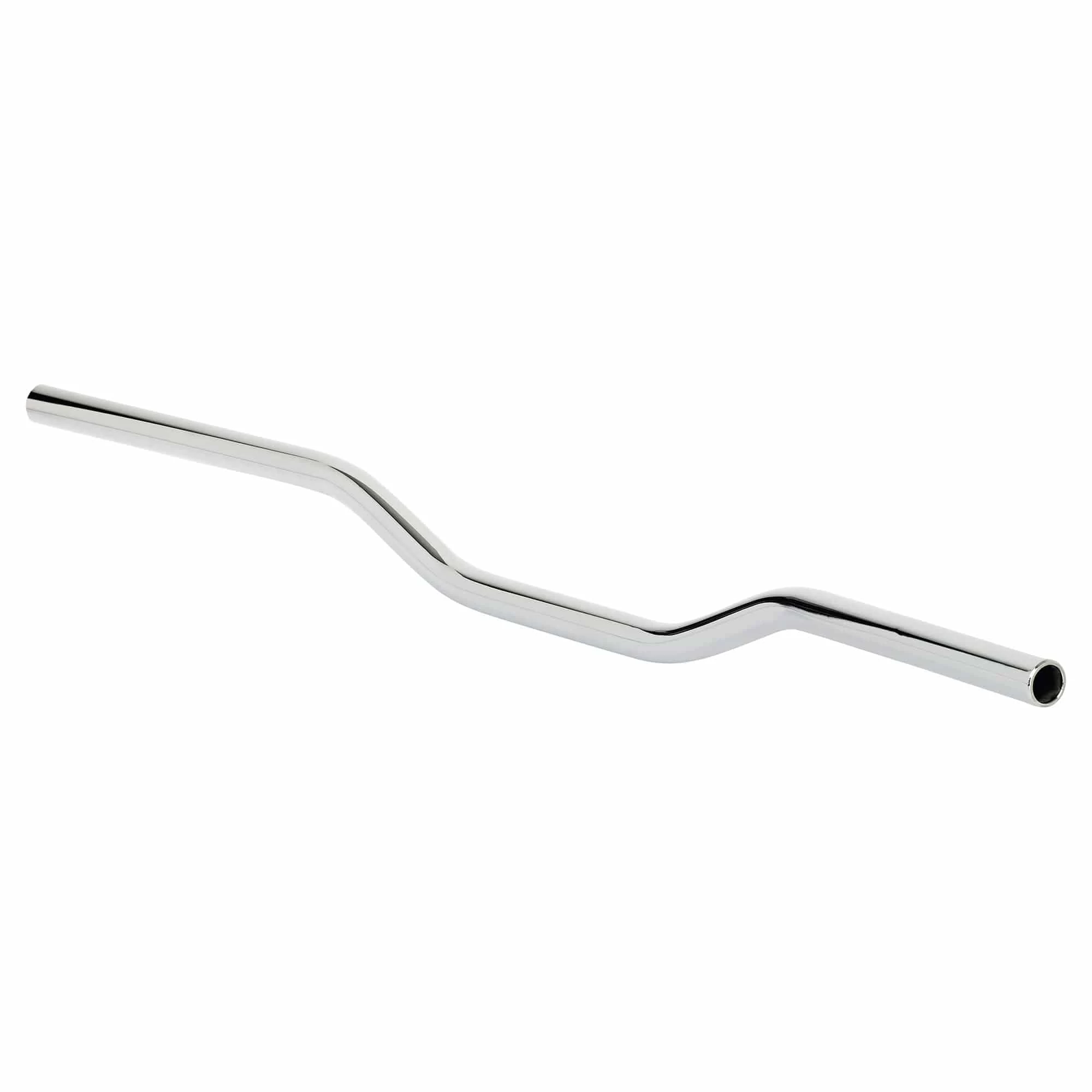

The top-selling handlebar in our range, and for good reason. Our Tracker bars come in two O.D.’s and three heights, and look great in any stock or aftermarket riser you can imagine. These handlebars are constructed with seamless CNC mandrel bent 0.120” wall 4130 chromoly tubes. Available in two styles: Smooth bars are for custom applications and have no slots, dimples or castellated ends. TBW w/ insert handlebars work with regular, cable-operated throttles, and if you remove the black end plug it will accept Harley’s Throttle-By-Wire control module. These bars have slots on each side for stock H-D hand controls and an exit slot in the center for internal wiring.

With a backsweep less severe than most stock handlebars, any Tracker in our range is a great replacement for riders who want to ditch the wheelbarrow feel of OE bars. When people ask for our advice on which Tracker to mate with any given Murdock riser, we recommend building a combo that puts your hands slightly below or even with the height of your shoulders when you’re sitting comfortably on your motorcycle. Hands higher than shoulder height is popular, but it’s a position better suited for experienced riders. If the cables and control wires on your bike prohibit going too tall or wide with your bars, combine our low or mid Tracker with some Slimline or Thunder risers for a clean, race-inspired, comfortable cockpit.

• Seamless 0.120″ (3mm) wall 4130 chromoly construction
• Precision mandrel-bent tubing for comfortable, precise ergonomics
• Black electroplate and mirror chrome-plated finishes available
• Two sizes available: 7/8- and 1-inch O.D.

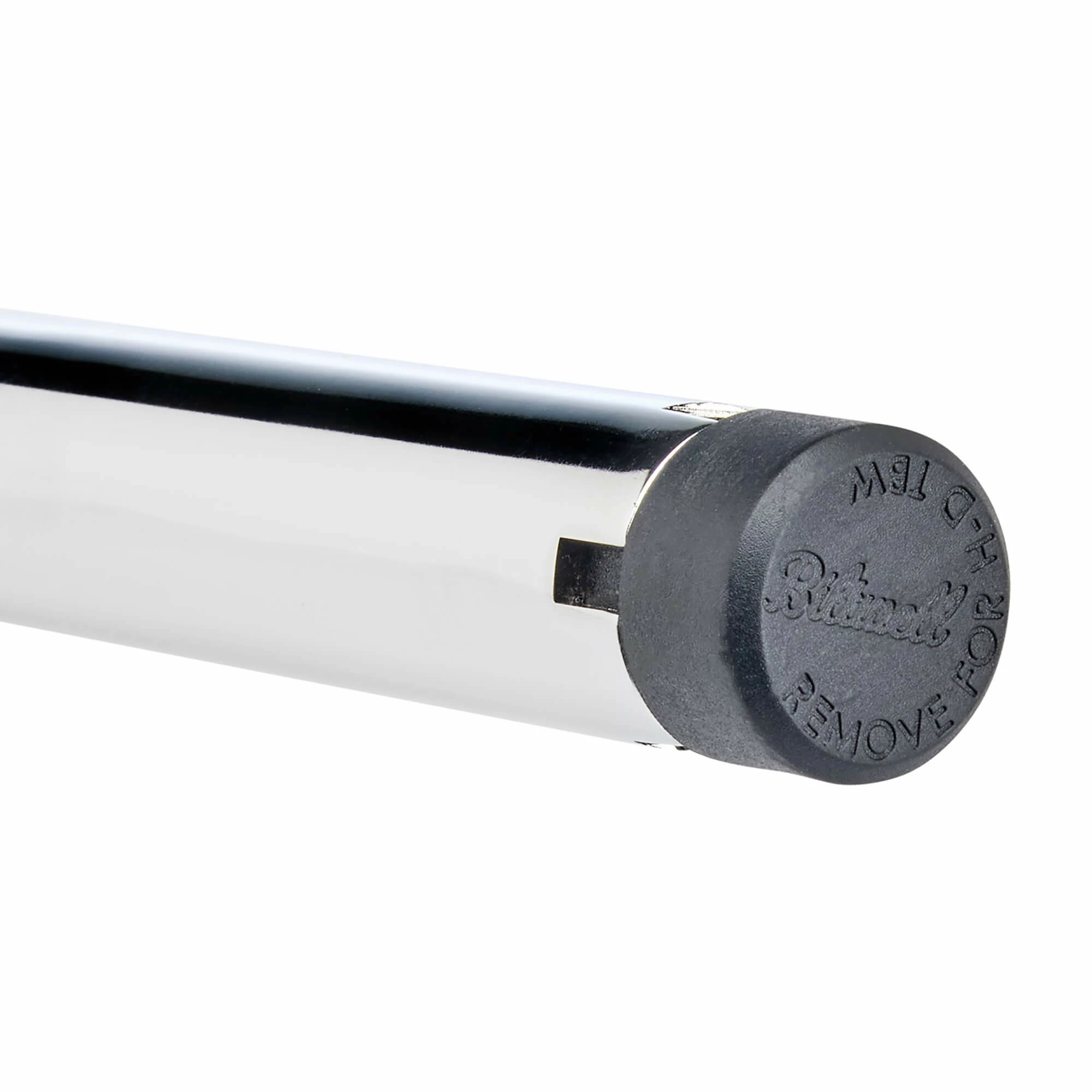

• 1″ O.D. model available in smooth for custom application or TBW w/ insert for regular, cable-operated throttles, and if you remove the black end plug it will accept Harley’s Throttle-By-Wire control module
• Technischer Überwachungsverein (Technical Inspection Association, or TüV) in Germany is an independent laboratory that tests the fatigue strength, manufacturing quality, and fitment for a wide range of consumer products, with special emphasis on automotive and motorcycle components and accessories. Biltwell handlebars and risers that have received TüV verification are among the strongest and most thoroughly well-tested motorcycle parts in the world.

HANDLEBAR MEASUREMENTS
Rise	2.25″
Width	30″
Center Width	5.25″
Pullback/Sweep	2.5″
Handlebar Diameter	1″
Controls Diameter	1″
Clamping Diameter	1″

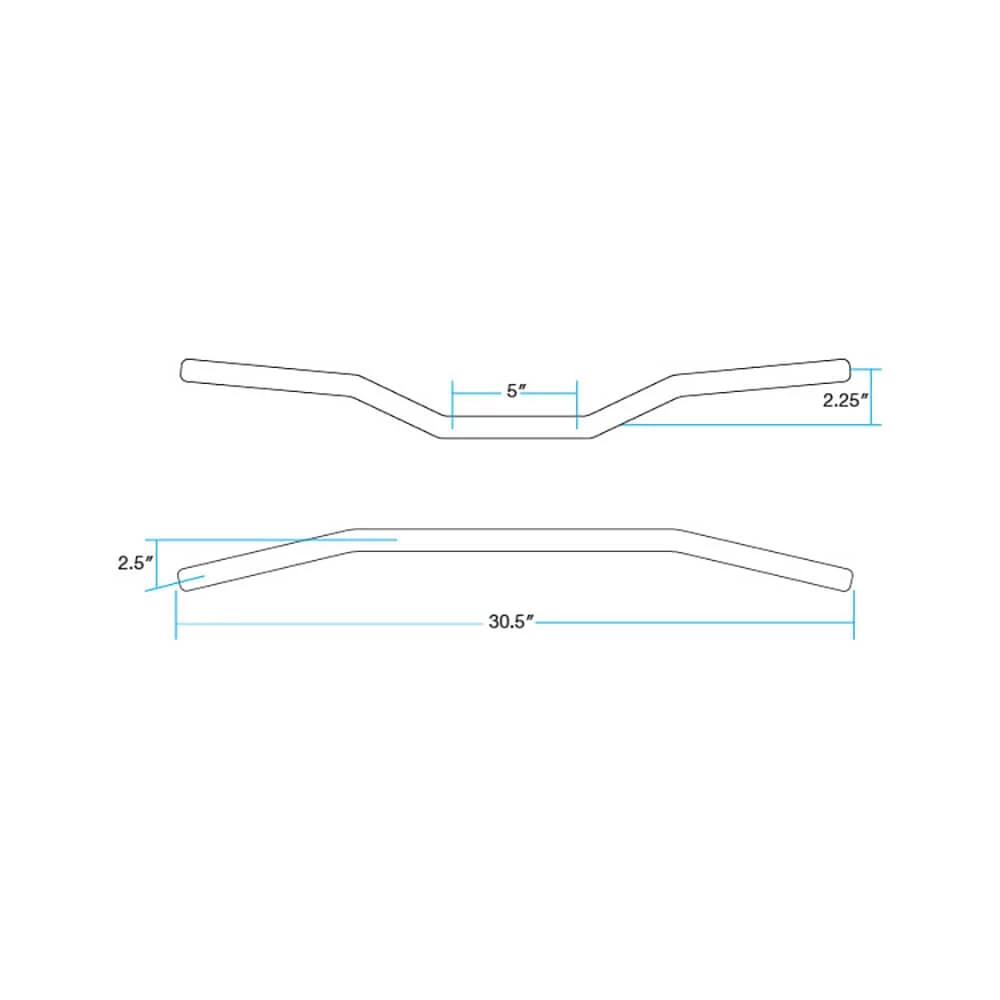

HANDLEBAR MEASUREMENT NOTES See the example diagram above to see how these handlebars are measured. Note that the diagrams are just examples, and are not drawings of this exact set of handlebars! For more information on handlebar measurements, and how to find the right set of bars for your bike, check out our Motorcycle Handlebars 101 article!
