Cycle Standard Bayonet / Cam Harley Style Vented 2.5" Gas Cap - Gloss Black

Cycle Standard Bayonet / Cam Harley Style Vented 2.5" Gas Cap - Gloss Black - Image 2

Cycle Standard Bayonet / Cam Harley Style Vented 2.5" Gas Cap - Gloss Black - Image 3

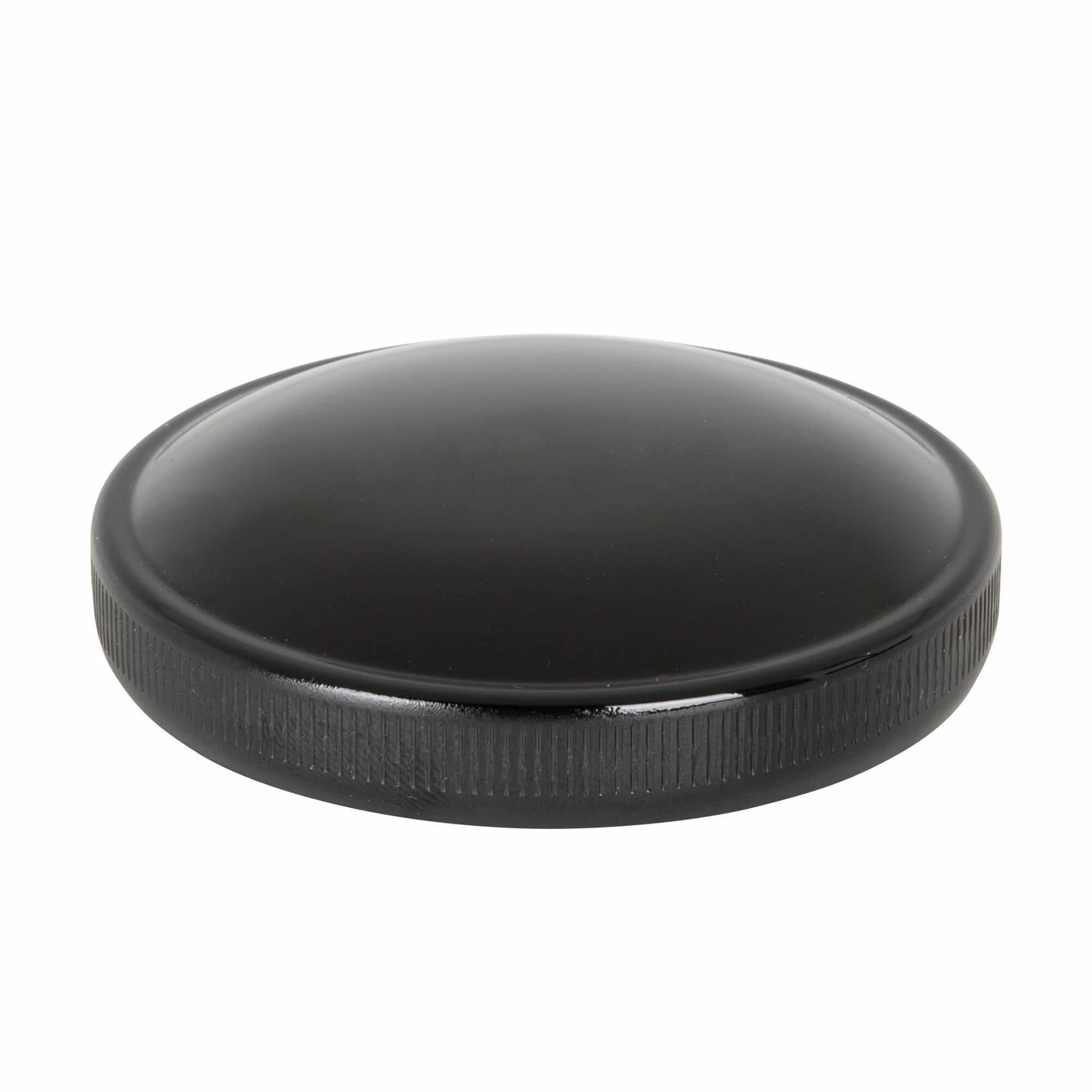

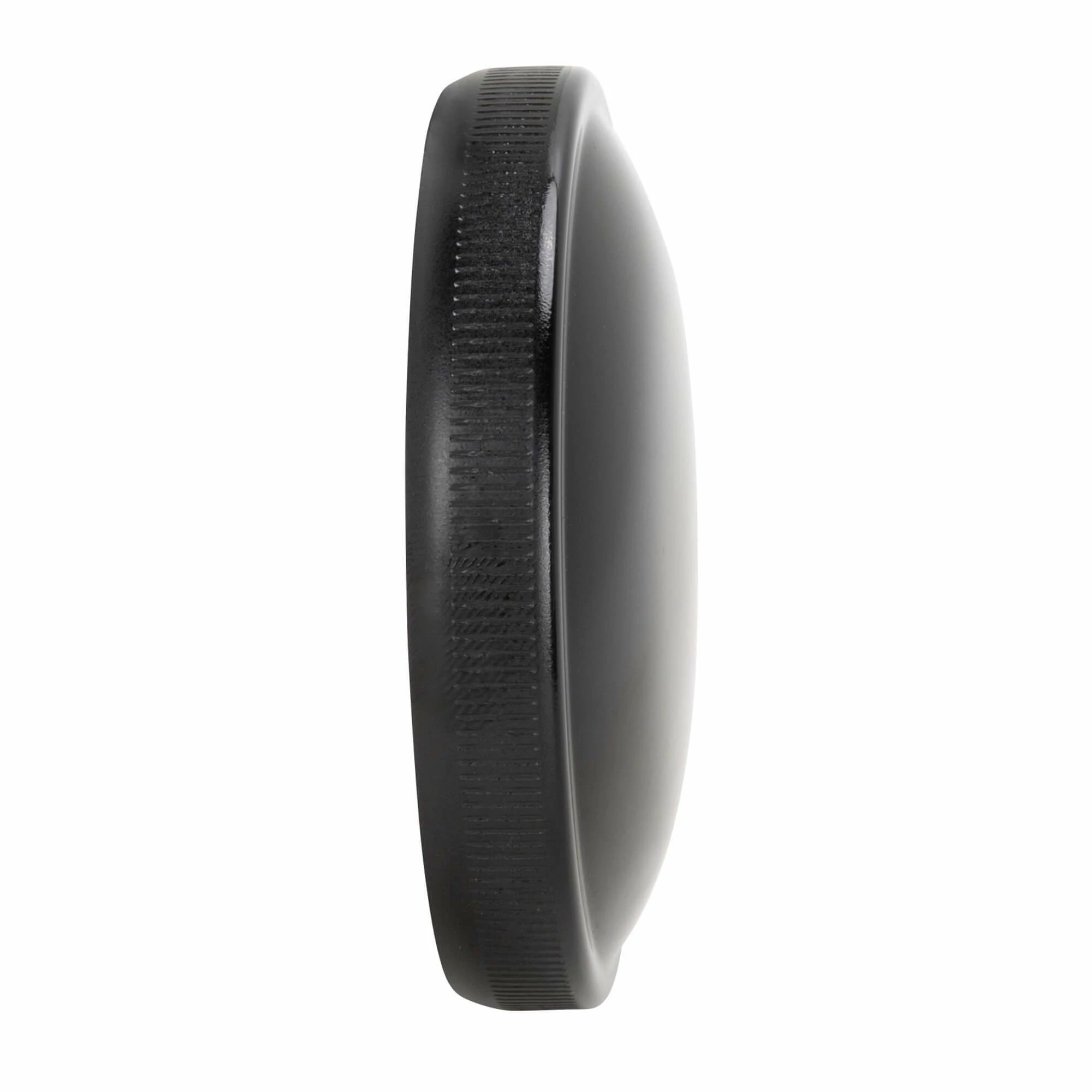

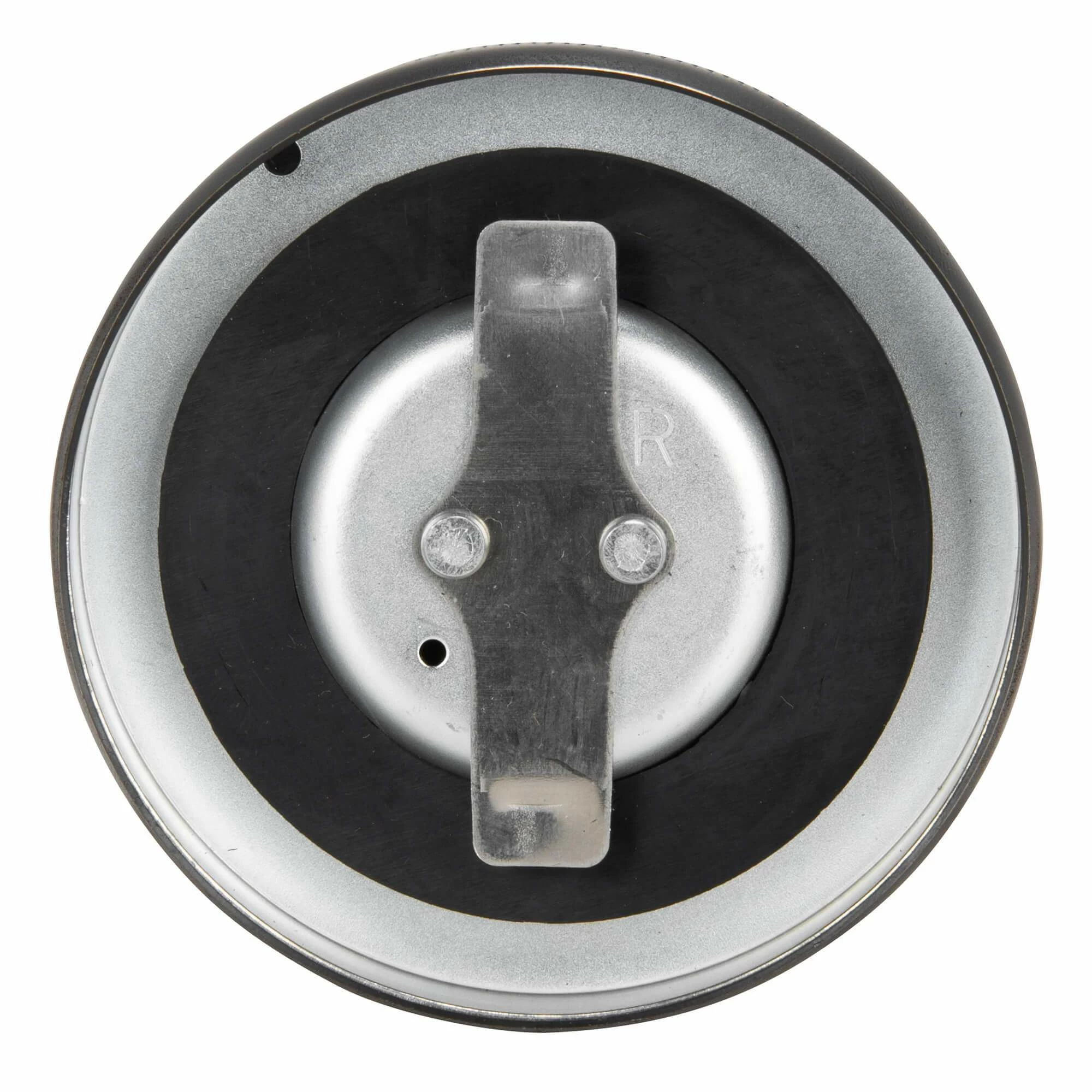

Cycle Standard Bayonet / Cam Harley Style Vented 2.5″ Gas Cap – Gloss Black

Original price was: $24.19.Current price is: $16.93.

SKU: 4458500194351 Category: Motorcycle Parts Tags: All Products Collection, Ebay_Ready, rtnly-dimensions-lwh:3_3_2, Vendor_Zodiac

100% Quality Promise
Nature-friendly materials, 100%.
Fast reliable delivery options
Shop with Peace of Mind

– Black
– Vented
– 2.5″ diameter
– Fits right side gas tanks on H-D 1973-1982 Big Twins.
– Replaces Harley # 61102-73a

These bayonet style gas caps (also known as cam gas caps) are vented and are black. This is a 2.5″ diameter gas cap, larger than the 1972 and earlier 2″ diameter gas caps.

This vented cap works with the right side gas tank on H-D Big Twins 1973-1982. For more information read the differences for various year range motorcycles below. This gas cap replaces Harley-Davidson OEM # 61102-73a.

Here is a breakdown of the year ranges of Harley-Davidson motorcycles that accept bayonet style caps, the differences in the gas tanks / gas caps, and the Harley OEM numbers for each. This should help determine which gas cap(s) you need for your motorcycle.

1936-1964

Bayonet style gas cap both left and right, and both gas caps are vented. Both caps are same ‘depth’ in that they engage the cam bung on the gas tank in an identical fashion. Caps are approximately 2″ diameter. OEM part number 61103-36

1965-1972

Bikes in this year range that take a single gas cap use OEM 61103-36. Bayonet style gas cap both left and right. The left side cap is non-vented and the underside is ‘taller’ than the right side, vented cap. This is because the cam bungs on the gas tanks are different left to right side, and gas caps are not interchangeable. Caps are approximately 2″ diameter. OEM #s 61103-65 for the left, unvented and 61103-36 for the vented right (Same as earlier year range)

1973-1982

Bikes in this year range that take a single gas cap use OEM 61102-73a. Bayonet style gas cap both left and right. The left side cap is non-vented and the underside is ‘taller’ than the right side, vented cap. Caps are a larger, approximately 2.5″ diameter and have a domed top. OEM #s 61103-073a for the left, non-vented and 61102-73a for the vented right side cap.
