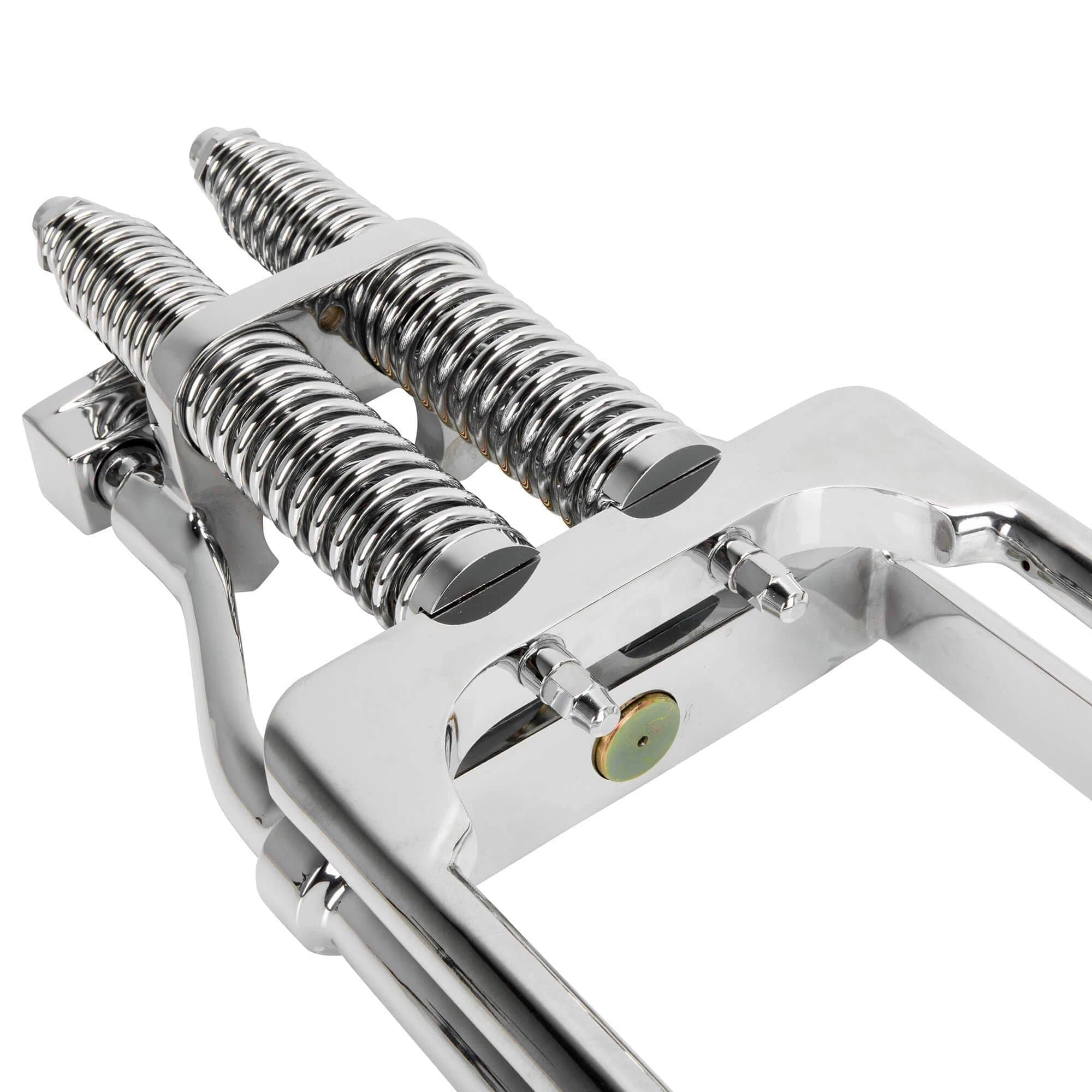

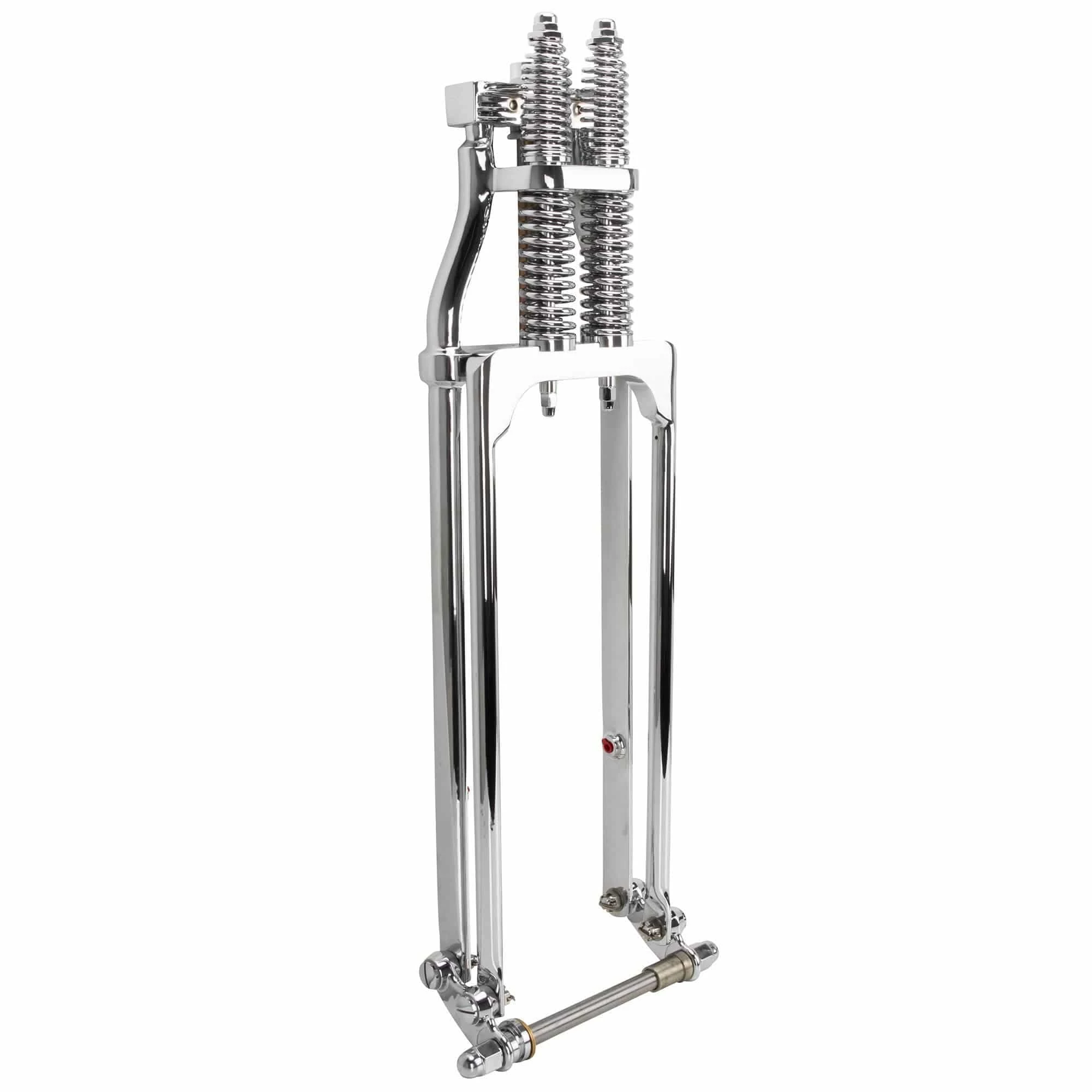

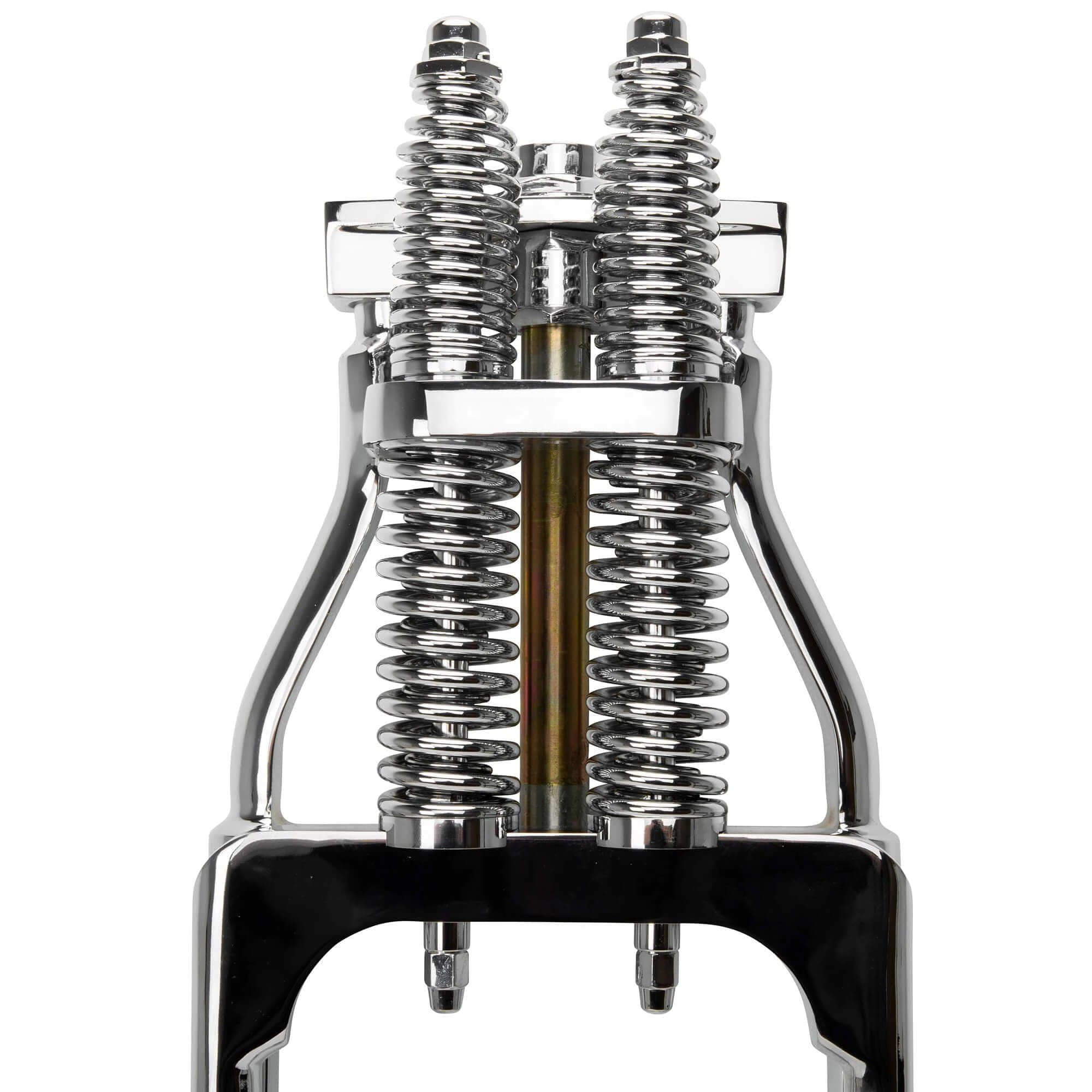

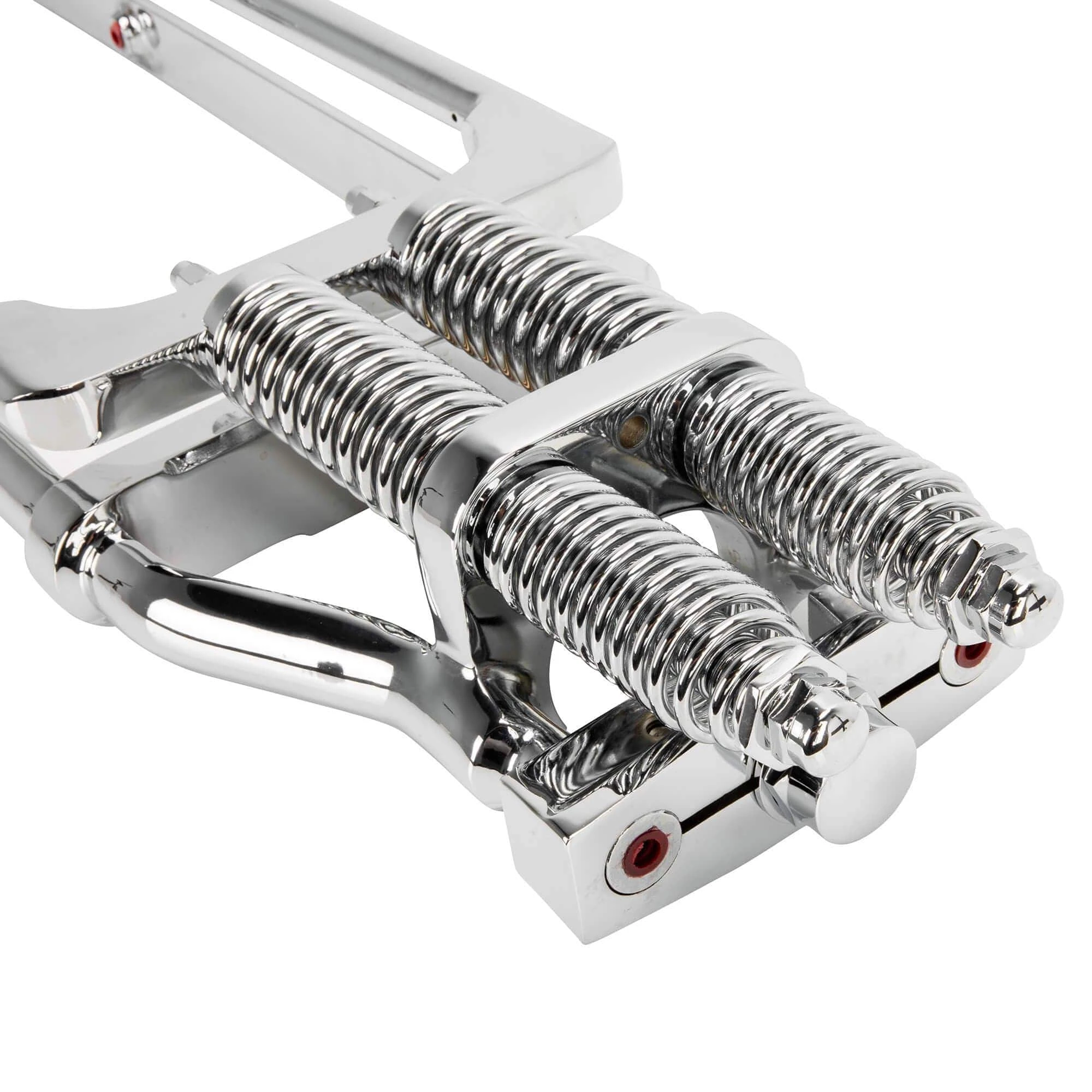

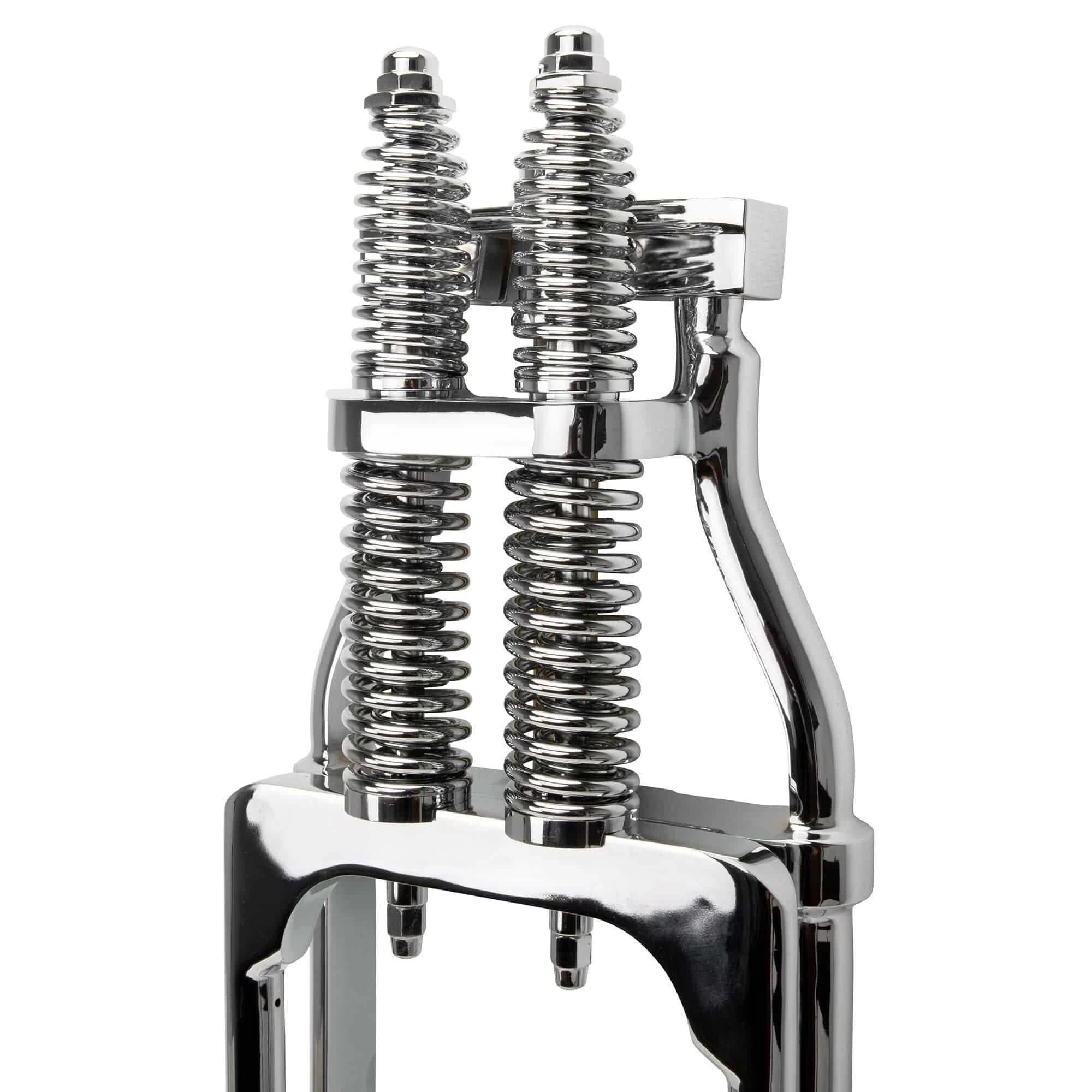

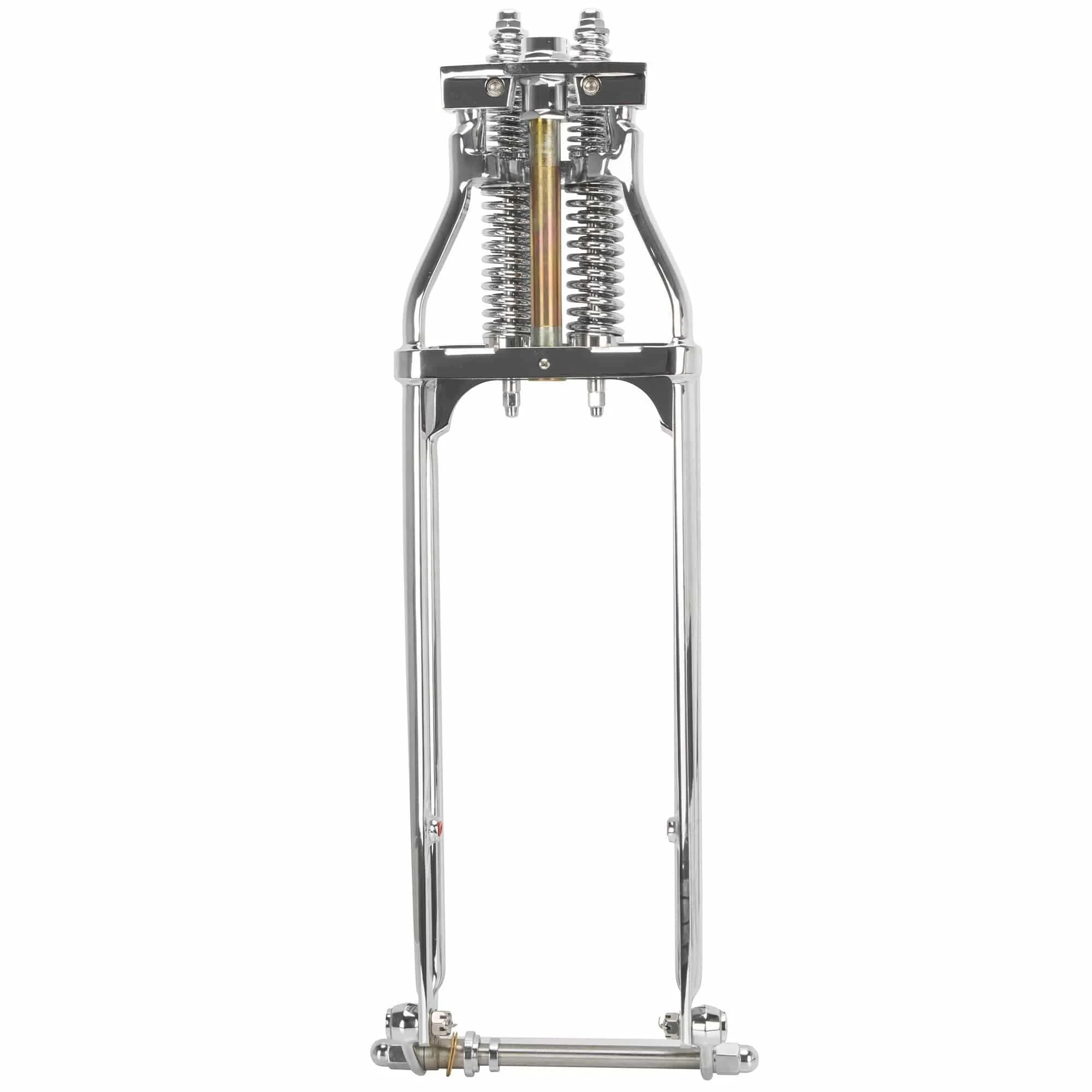

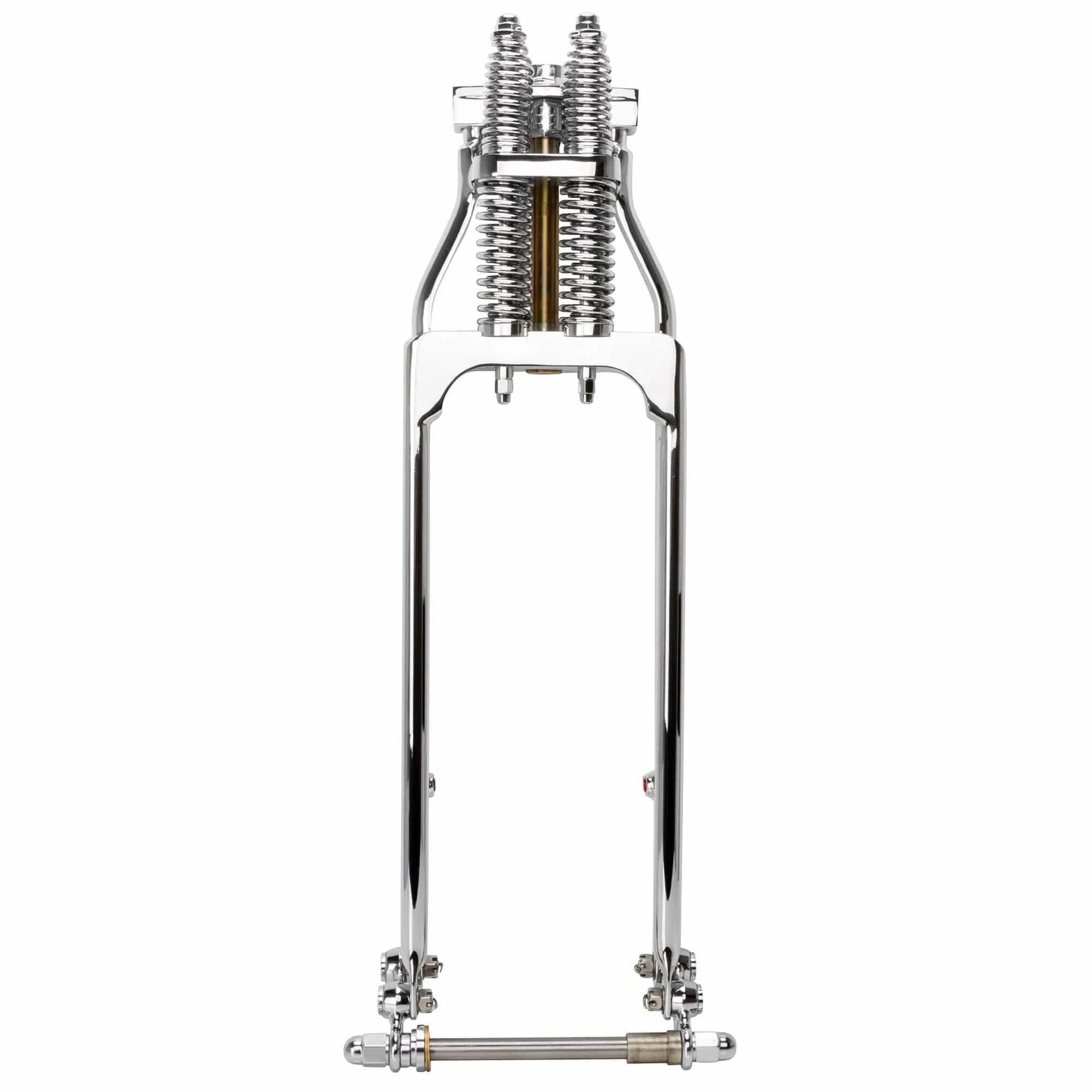

Mid-USA Hardbody Wide Style Gen 2 Springer Front End Standard Length – Chrome

These Mid-USA springers offer an affordable alternative to other sub-standard springers on the market and feature one piece rear legs for added strength. Available in chrome or black in standard length as well as -2, and +2, lengths for custom applications.

• Rocker grease fittings
• Fully assembled with a forged in-line top bracket without a built-in rake
• The standard length Springer (24″ measured from the bottom bearing to the axle center) is comparable to a standard length FXST front end

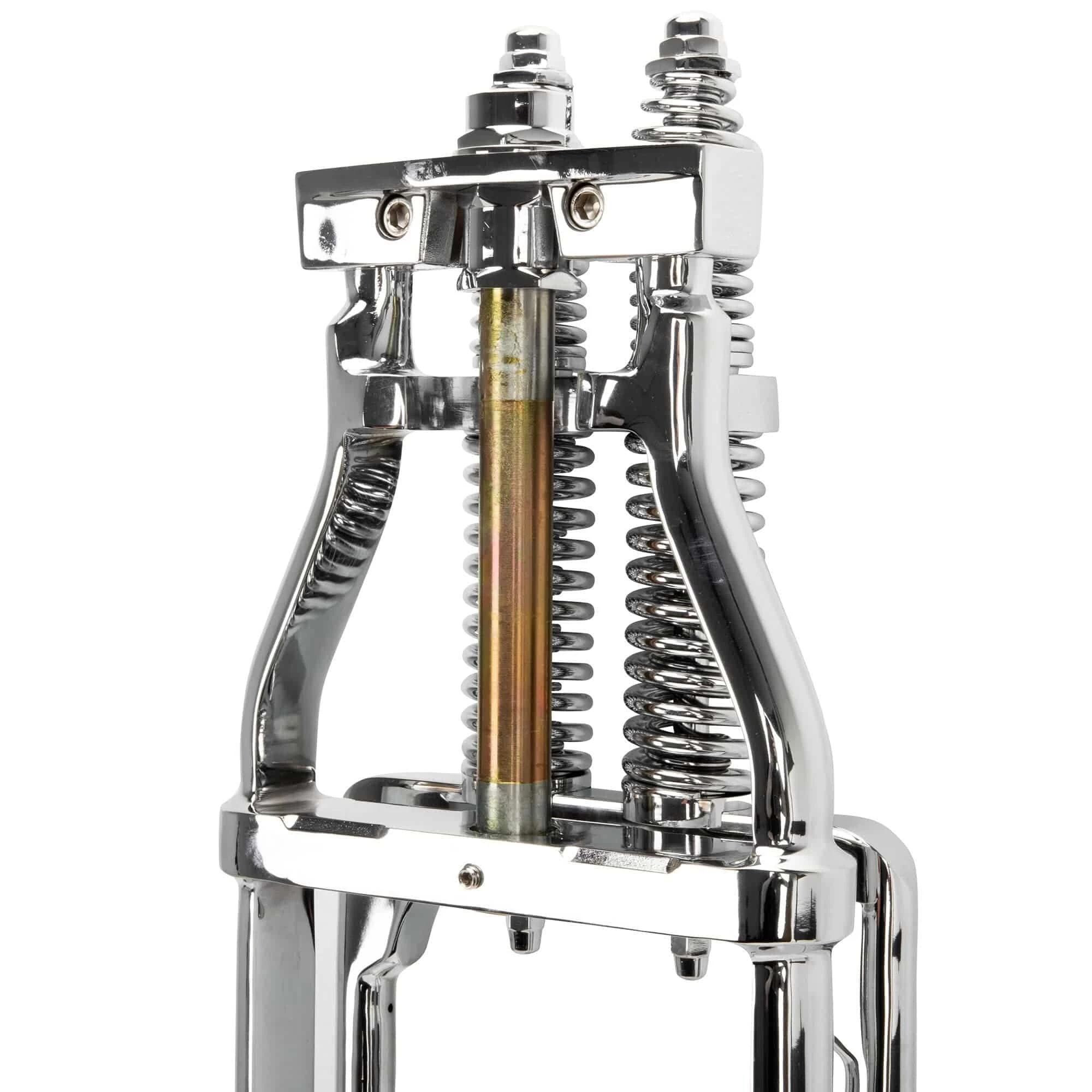

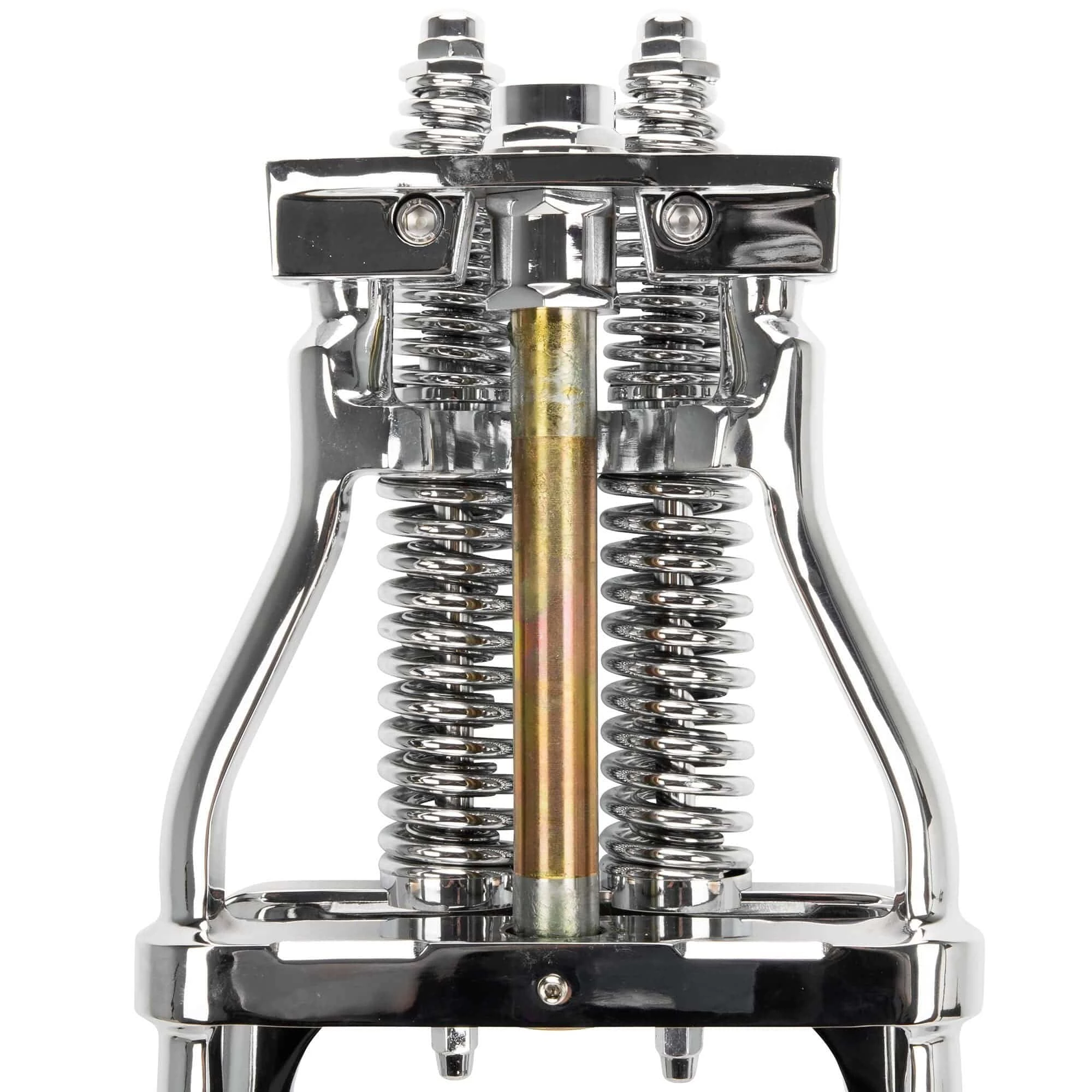

• 1″ O.D. steering stem designed for Timken type bearings
• Both rear legs are threaded for right or left brakes

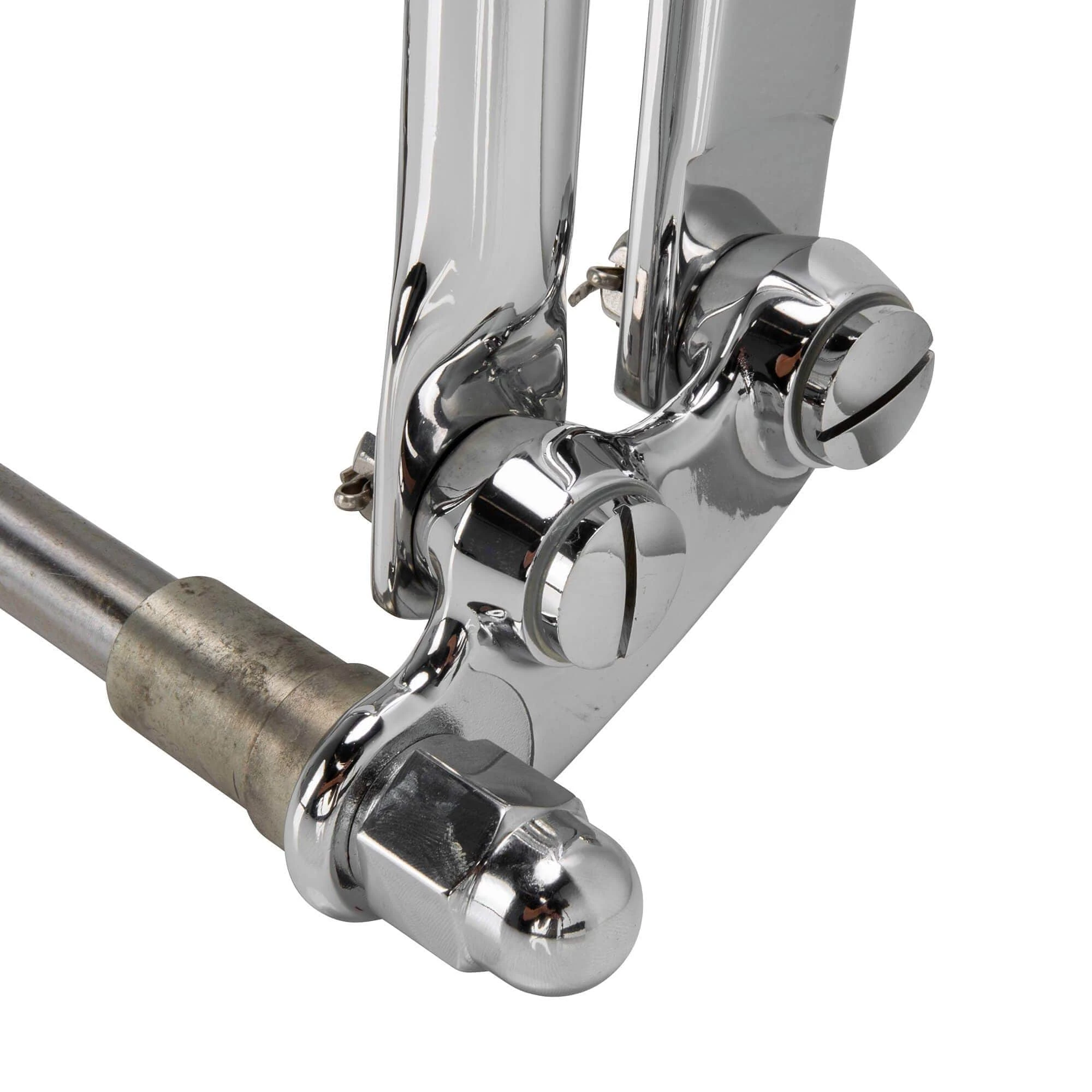

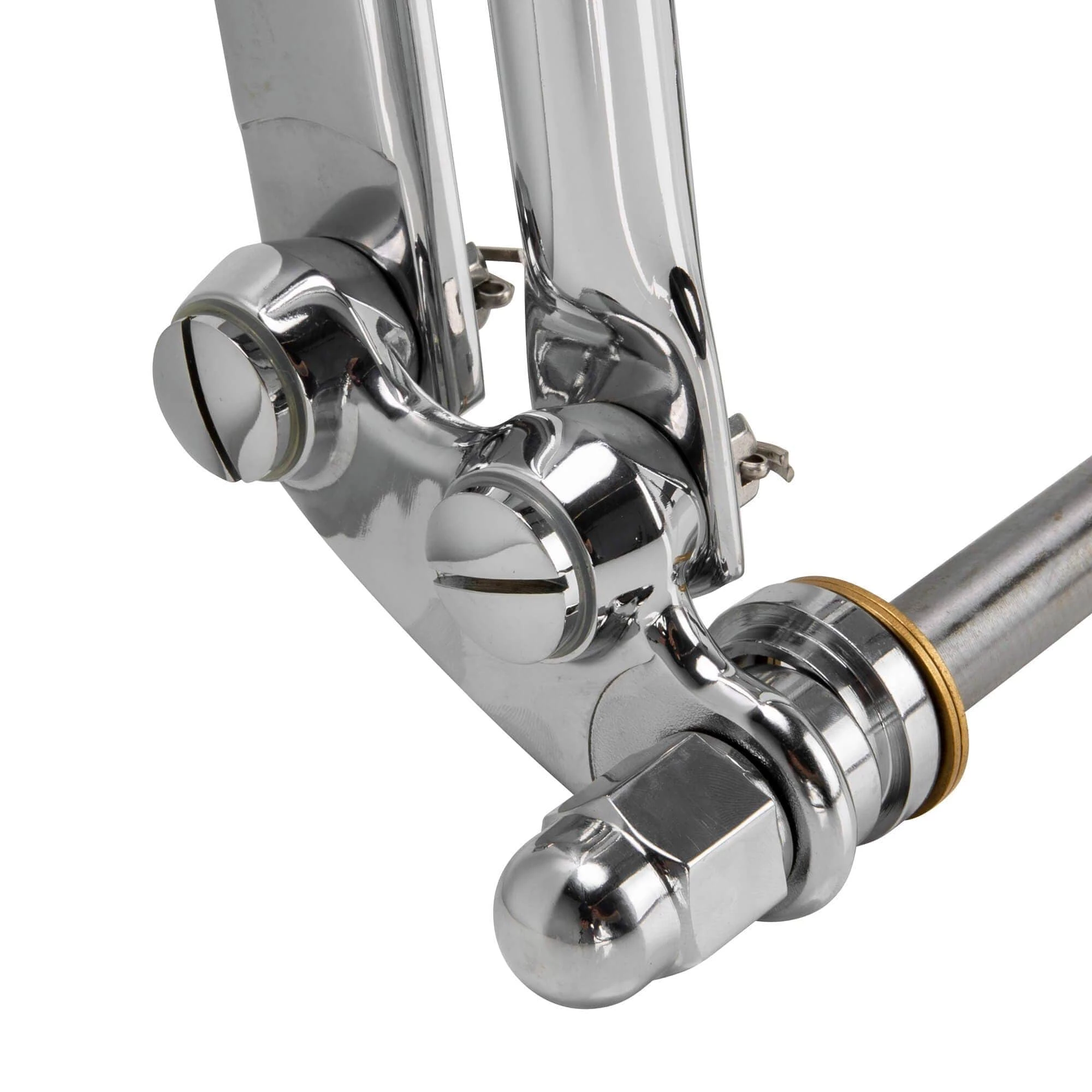

• Forged rockers for superior strength
• Rear legs are 1 piece from the rocker to the top tree

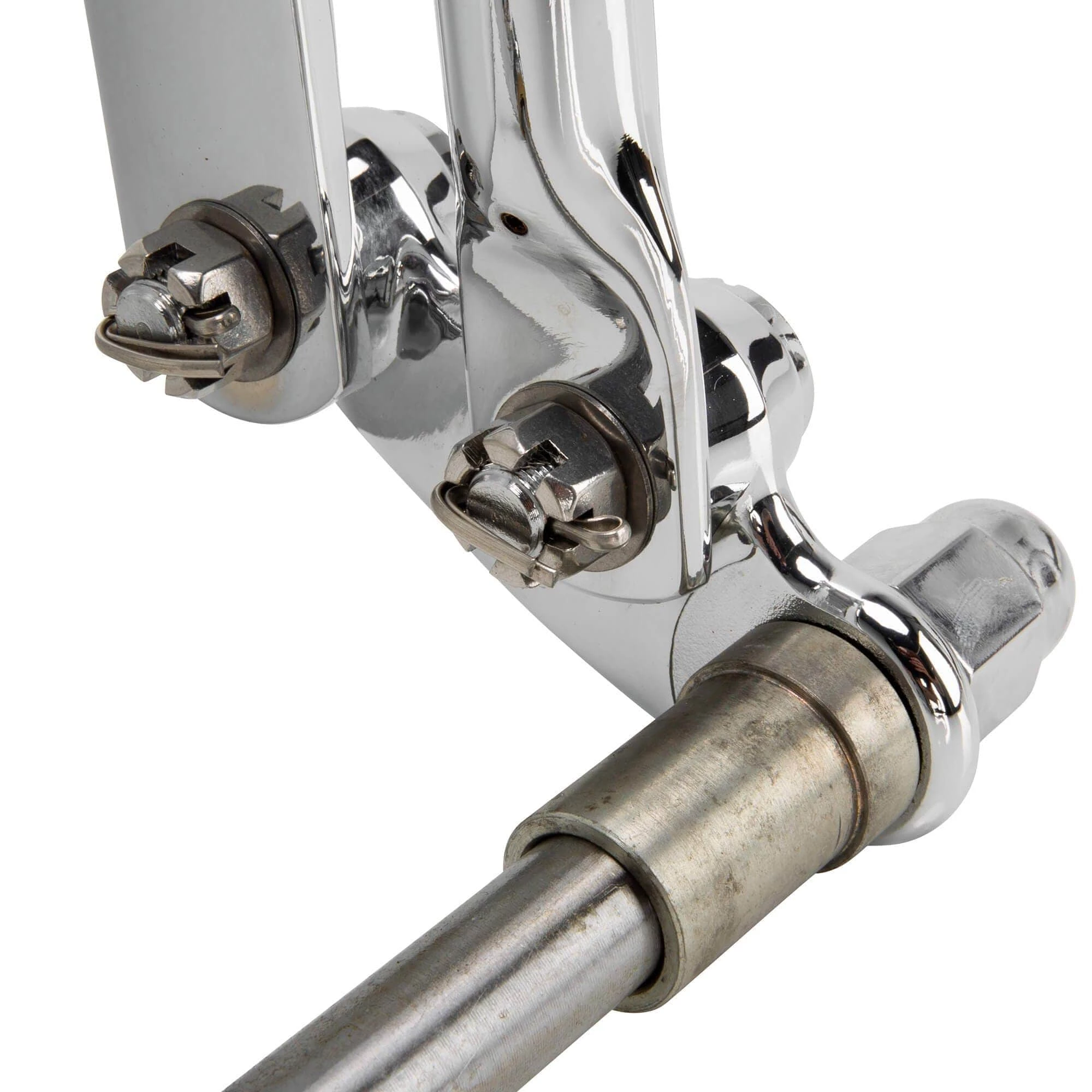

• The 3/4″ O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)

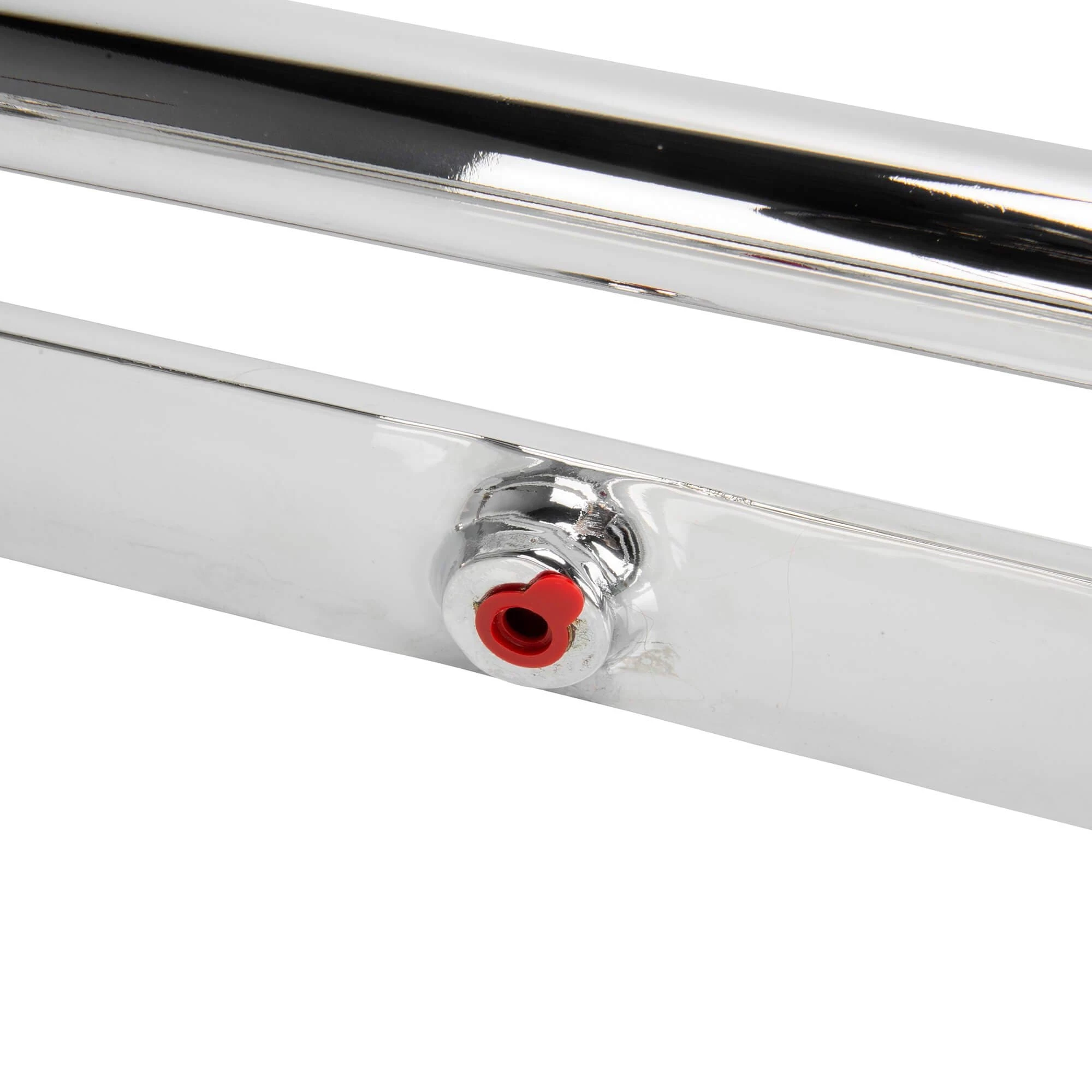

• 3/8”-24 threaded blind hole on fork leg for a brake stay
• Measures 9 1/4″ between rockers

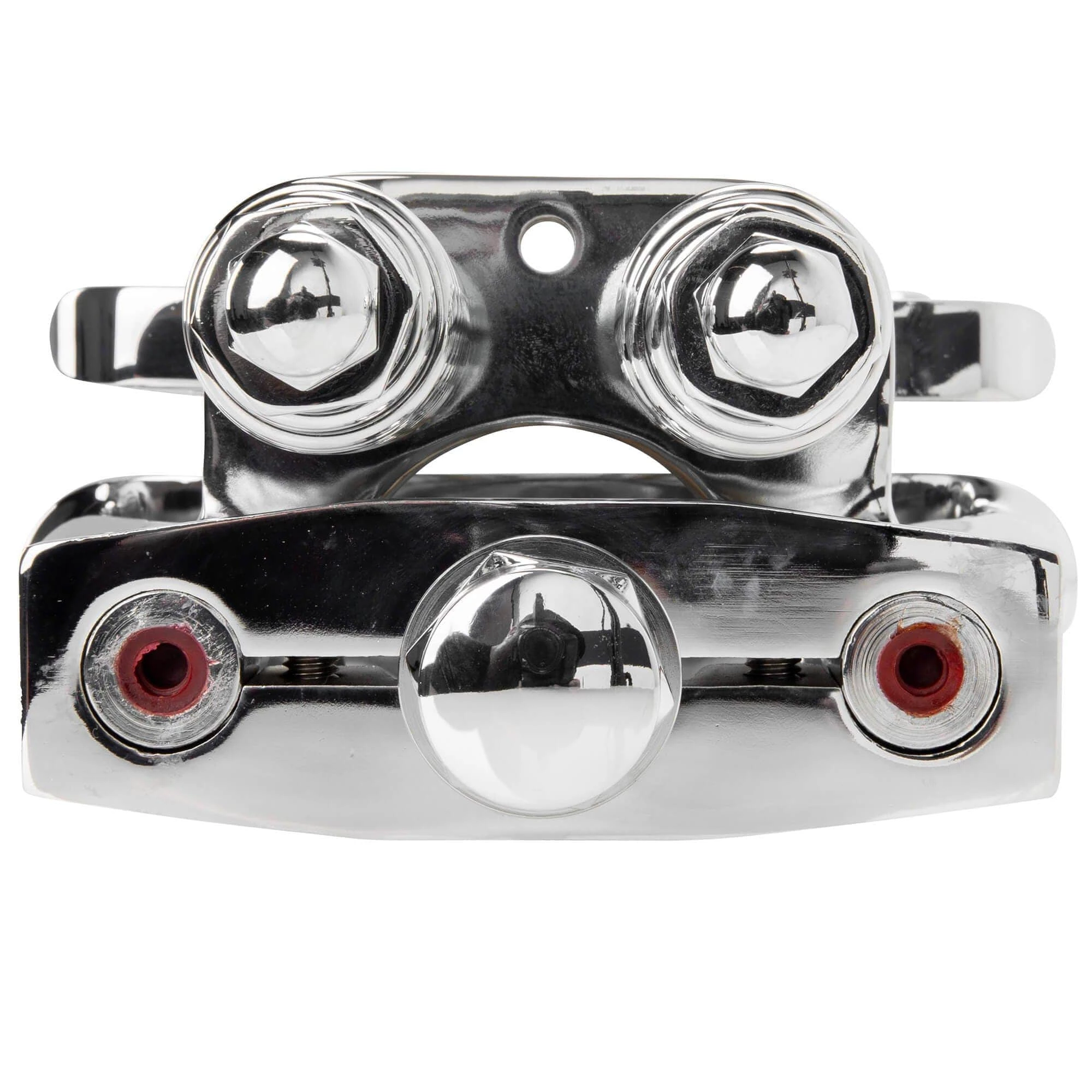

• Riser mounts are on 4 3/4″ centers and threaded 1/2-20
• Standard length 24″

NOTE: This springer will NOT fit Harley-Davidson Dyna models, or 2004 & later Sportster models due to the design of the frame neck and turning radius issues.
